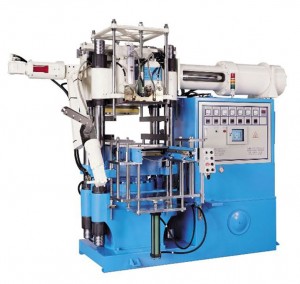

COLD RUNNER RUBBER (SILICON) INJECTION MACHINE

Cold-Runner-Rubber-(silicon)-Injection-Machine
     *click image to enlarge
 Type  100 Ton  200 Ton  300 Ton  400 Ton
Stroke  400mm 500mm  600mm  600mm
Working Table  450 x 450mm  503 x 508mm  580 x 600mm  700 x 700mm
Upper Heater Plate  450 x 450mm  503 x 508mm  580 x 600mm  700 x 700mm
Lower Heater Plate  460 x 460mm  495 x 508mm  580 x 600mm  700 x 700mm
Mold in-out plate  460 x 520mm  490 x 570mm  581 x 660mm  704 x 760mm
Inject Capacity 1000cc  1500cc  3000cc  4000cc
Piston Diameter  250mm  350mm  450mm  560mm
Electrical Heater  12KW  16KW  18KW  25KW
Motor-Single Motive Power  10HP (7.5)  15HP (11)  20HP (15)  20HP (15)
 Total Power  19.5 KW  27KW  33KW  40KW
 Mold Opening Method 0RT : up/down
1RT : in/out		 2RT : front ejector
3RT : middle mold
4RT : top mold

Special Features of Cold Runner Rubber (Silicon) Injection Machine

 1. Feed System :

  • Specially made screw is used to achieve optimal exhaustion for the material. Hot kerosene is circulated to avoid jamming while increasing the feeding speed while stabilizing the temperature of the fed material.

2.  Injection System :

  • The German resistance scale “cc” is used as the measuring unit. The temperature is controlled by the circulating hot kerosene to achieve accurate injection while avoiding jamming.

3.  Cold Runner Mechanism :

  • The sliding plate system is used to separate the injecting and curing function. Cold rubber compound is used for injection, and temperature is raised only for the curing process achieving almost zero waste material after injecting molding.

4.  Monitoring Design :

  • Full-area design to monitor the machine operation, pressure, flow rate, warning sign and warning record.

5.  Oil Path Design :

  • Pressure and speed settings are easier changed with the full-scale oil path system.

6.  Electrical Control System :

  • Precise temperature control is achieved using PID calculations, temperature can be adjusted by connecting the man-machine interface.
  • The module saving function includes temperature, pressure/ flow rate, time, injection position, upper/lower position and function settings.
  • Heating system: user SSR solid relay with fast heat-up without exceeding the limit.
  • Mold adjustment: slow mode adjustment function is provided. To adjustment the mold, simply press up/down key to complete the mold position setting.
